1. 适用于通讯行业及医疗汽车行业各类柔性及半柔同轴线、充电枪EV线缆、 医疗线等剥皮,剥口整齐,精密不伤及导体。
2. 人机界面,操作简单易懂,最多可剥皮9层,可存储多达99种加工数据。
3. 旋转式刀头,四片旋转刀的设计及精巧的结构更提高了剥线的稳定性与刀具工作寿命。
4. 采用伺服电机、精密级滚珠丝杆及多点位运动控制系统,性能稳定而高效。
5. 刀具采用进口钨钢及钛合金涂层,锐利而又经久耐用。
6. 可满足多层剥皮,多段剥皮、自动连续起动等特殊要求。
7. 在原有机型上进行了不断地创新,功能及结构更加优化,性能更强大。

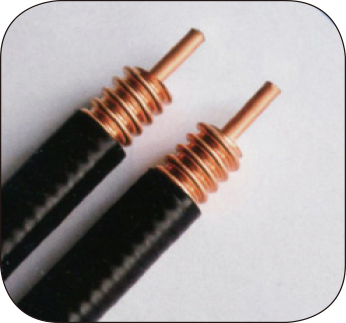

1. Suitable for different types of semi-flexible and flexible coaxial wires, charging cables, medical wires' processing in communication and medical industry. Stripping edge smooth and no harm to the conductor.
2. Human-computer interface, easy to operate and understand, Max. 9 layers of stripping and 99 sets of memory function.
3. Rotation blade head, four pieces of exquisitely designed blades improved stripping stability and blades’ lifetime.
4. Adopt servo-motor, precision ball screw and multi-point movement control system, working performance is stable and efficient.
5. Blades are made of imported tungsten steel and titanium alloy coating, sharp and durable.
6. This machine can meet multi-section stripping, stripping & twisting, automatic start in succession and other special requirements.
7. Continuous innovation on the previous models, function and structure are more optimized, performance is more powerful.

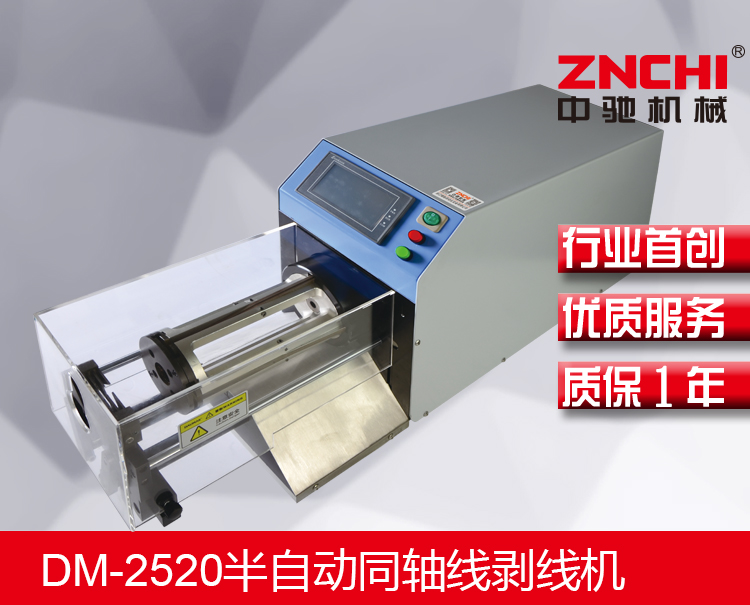

型号 加工直径 切割深度单位 加工效率 最大剥线长度 最大剥皮层数 外型尺寸 重量 电源 功率 | DM-2520 3.0-25mm 0.01mm 300-800PCS/H(视线材而定) 200mm 9层 Layers 1000×225×400mm 50KG AC220V 50 60HZ 800W |
